Tracked Mobile Impact Crushing Plant

Powerful Function,Excellent Product Shape,High Energy Efficiency Ratio

Midas MI series tracked mobile impact crushing plant, each module is compact and efficient, many places are assisted by hydraulic pressure, equipped with return screening system, in addition, iron removal air separation spray device, can do primary and secondary crushing, suitable for medium soft rock and construction waste. The machine delivers stable performance, is easy to move between sites, and provides a superior particle shape.

Application scenarios: primary and secondary crushing stages of medium soft and hard materials, mine ore crushing, construction waste recycling, construction aggregate production, highway/railway, road and bridge construction.

Processing capacity:

100-600 （t/h）

Total system power:

217.2-415.7 （KW）

Category:

Tracked Mobile Crushing Plant

Get a quote

Service hotline:

+8615250961721

Product Details

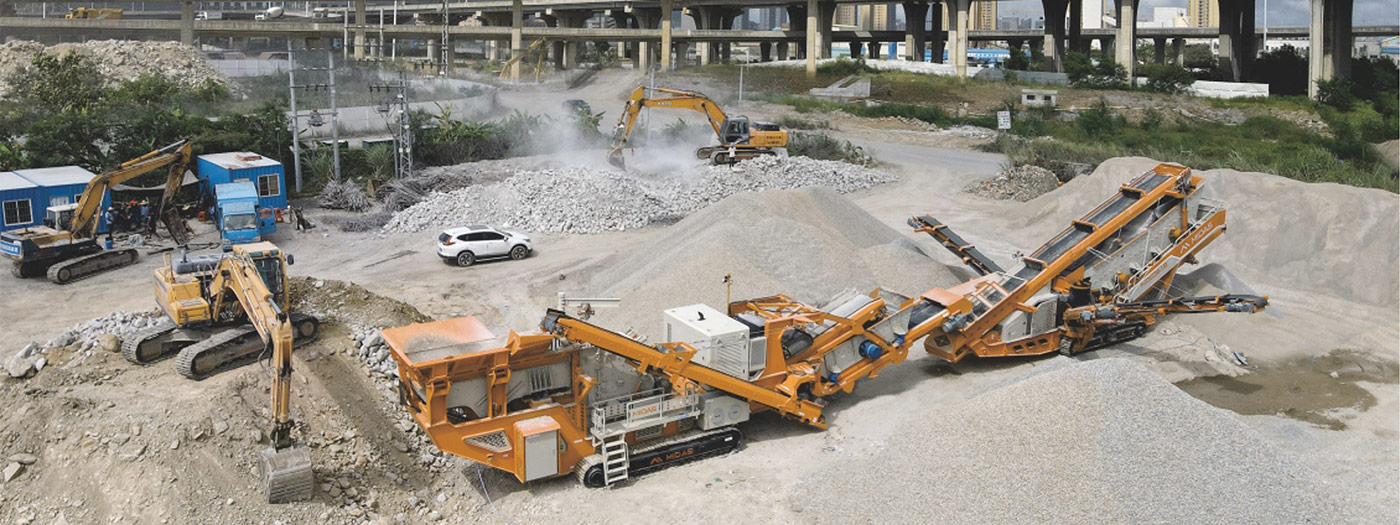

Tracked-Mobile-Impact-Crushing-Plant-06

Product Specifications

Whole plant model	Weight (T)	Power of complete machine (KW)	Crusher model	Crusher size	Optional
MI260R	55	309.7	M1213	1200*1300	Grizzly feeder、Side discharge conveyor、Return system
MI260RE	57	309.7	M1213	1200*1300	Oil and electricity dual-purpose system 400kw Power system
MI350R	63	339.7	M1315	1300*1500	Grizzly feeder、Side discharge conveyor、Return system
MI350RE	66	339.7	M1315	1300*1500	Oil and electricity dual-purpose system 500kw Power system
MI450R	65	375.7	M1415	1400*1500	Grizzly feeder、Side discharge conveyor、Return system
MI450RE	68	375.7	M1415	1400*1500	Oil and electricity dual-purpose system 500kw Power system
